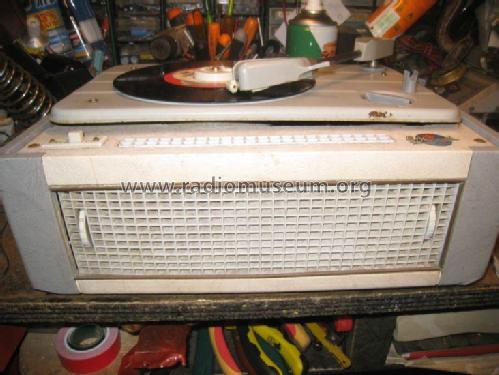

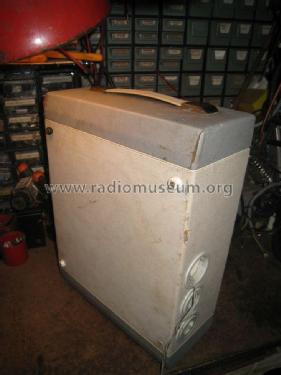

Sconosciuto - Unknown 1 Girdischi 4 velocità

Marconi Italiana (Marconifono), Officine / Ufficio Marconi; Genova, Roma

  • Year
  • 1965 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 264889

 Technical Specifications

  • Number of Transistors
  • 4
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
  • Power out
  • 2 W (undistorted)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Sconosciuto - Unknown 1 Girdischi 4 velocità - Marconi Italiana Marconifono,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 330 x 250 x 130 mm / 13 x 9.8 x 5.1 inch
  • Notes
  • 4 velocità 16-33-45-78 giri. Controllo di volume e tono. Testina girevole 45/78 giri.

  • Net weight (2.2 lb = 1 kg)
  • 2.2 kg / 4 lb 13.5 oz (4.846 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
