Standard Signal Generator TF 867

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Instruments, Marconi-Ekco (MI, MEI)

• Year
• 1949 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 318638

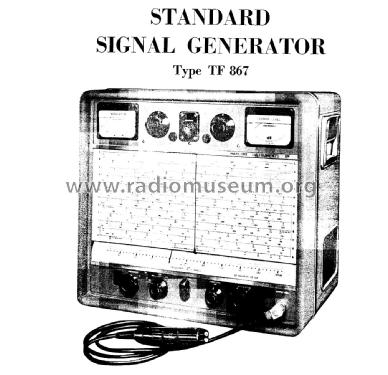

• Picture

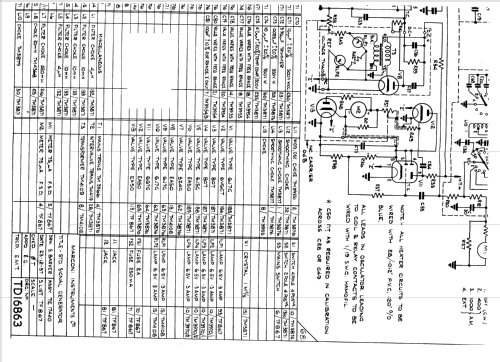

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6V6 807 807 6J5G 6J7G 6J7G 6J7G 6Q7G 5Z4G EA50 EA50 EA50 EA50

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 100-115; 115-125: 200-230; 230-250 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Standard Signal Generator TF 867 - Marconi Instruments, Marconi-

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Notes

• Output range:

  • 15 kHz to 30 MHz
  • 4 µV to 4 V

  Internal and external modulation

  See also Marconi TF-867A
