• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78175

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• VMS4B MH4 VMS4B VMS4B MH4 PX4 U12

• Main principle
• Superheterodyne (common); ZF/IF 120 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

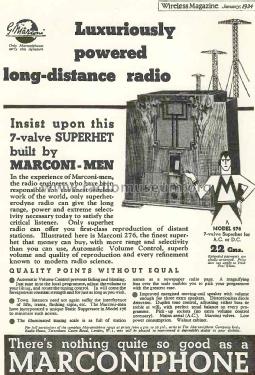

• Model: Marconiphone 276 AC - Marconi Co. Marconiphone,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 16.5 x 18.5 x 11.5 inch / 419 x 470 x 292 mm

• Notes

• First Marconiphone Superhet. Has a static suppressor switch. The IF stage can also be fitted with the tube MS4B without controlling.

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• -- Original-techn. papers. (Service Engineer Supplement to the Broadcaster dated July 1935)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
