• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78004

• Number of Tubes
• 3

• Valves / Tubes
• S23 HL2 PT2

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

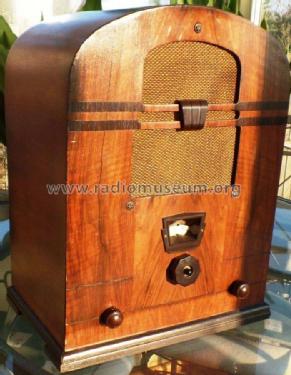

• Model: Marconiphone 282 - Marconi Co. Marconiphone,

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 14 x 19 x 9.5 inch / 356 x 483 x 241 mm

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• Radio Marketing Service Engineer June 1945

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.

• Other Models

• Here you find 502 models, 335 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
