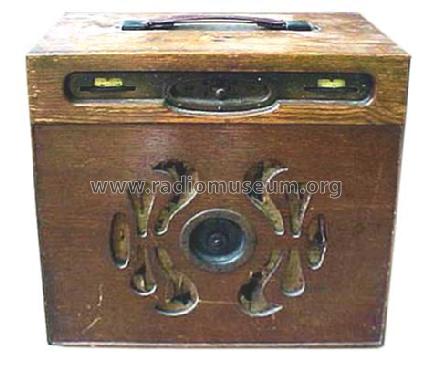

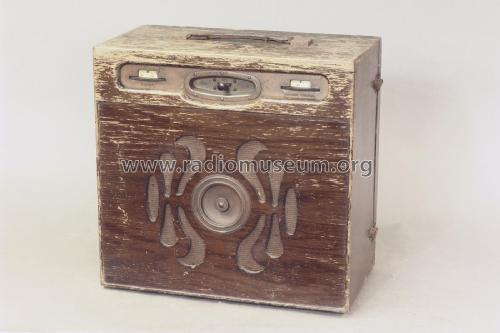

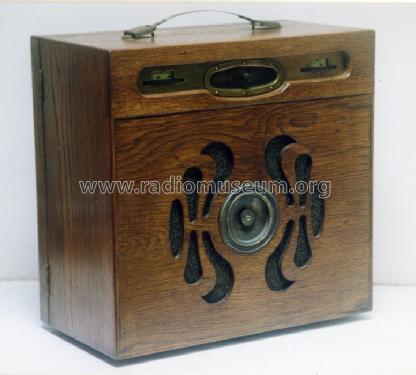

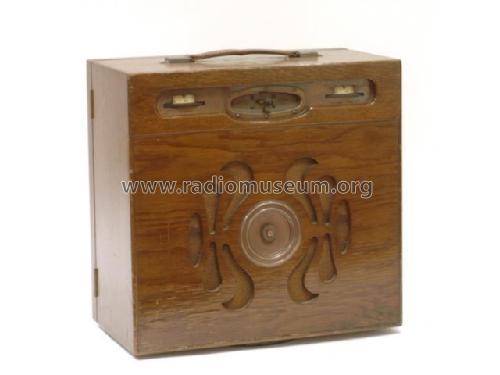

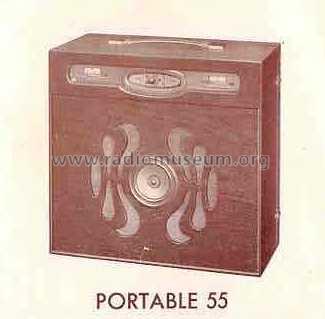

Marconiphone 55

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77459

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

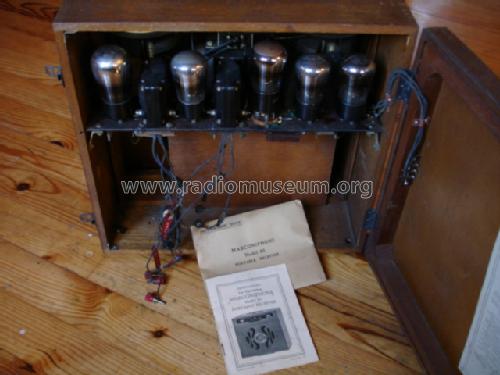

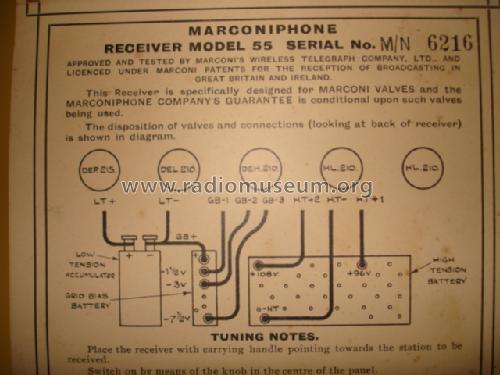

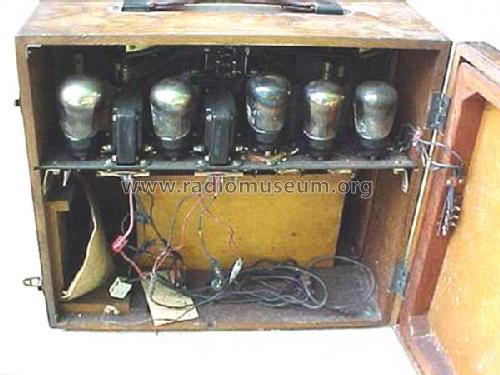

• Valves / Tubes
• DEP215 DEL210 DEH210 HL210 HL210

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage

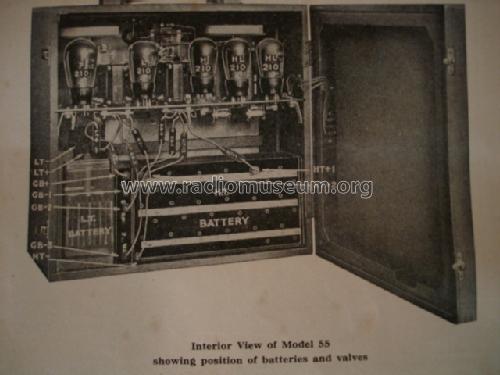

• Storage and/or dry batteries

• Loudspeaker

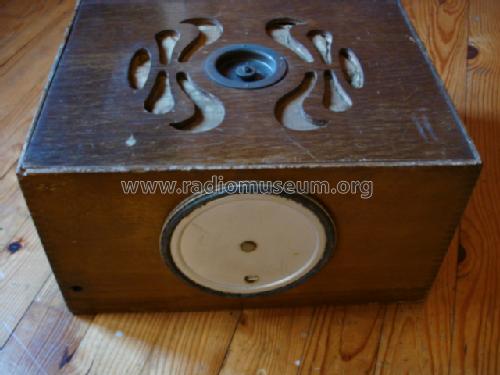

• Magnetic loudspeaker (reed) generic.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Marconiphone 55 - Marconi Co. Marconiphone,

• Shape

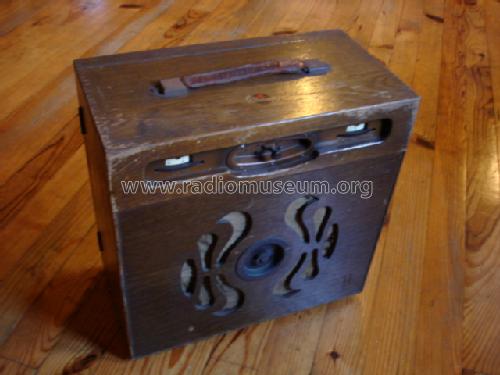

• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 14.5 x 14.5 x 8 inch / 368 x 368 x 203 mm

• Source of data
• Radio! Radio!

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
