• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222998

• Number of Tubes
• 6

• Valves / Tubes
• X61M KTW61 DH63 KT33C Y61 U31

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• AC/DC-set / 205; 225; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

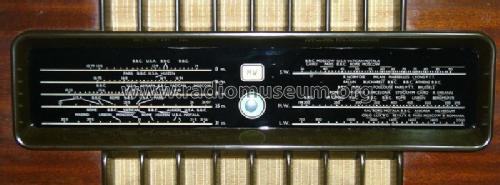

• Model: Marconiphone 7200 - Marconi Co. Marconiphone,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 330 x 240 mm / 18.9 x 13 x 9.4 inch

• Notes
• Same schematic as Marconiphone 5200.

• Author
• Model page created by Francisco Suarez. See "Data change" for further contributors.
