- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 78868
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 & 108 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Marconiphone 895 - Marconi Co. Marconiphone,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 15 x 11 x 7 inch / 381 x 279 x 178 mm
- Notes
- Four pushbuttons for pre-set radio stations. Black leathercloth covered case with red coloured trim and controls with a carrying handle on top and a turntable underneath. Same chassis as the HMV 1406 model which has the same cabinet but ivory coloured trim and controls.
- Source of data
- Radio! Radio!
- Literature/Schematics (1)
- - - Manufacturers Literature
- Literature/Schematics (2)

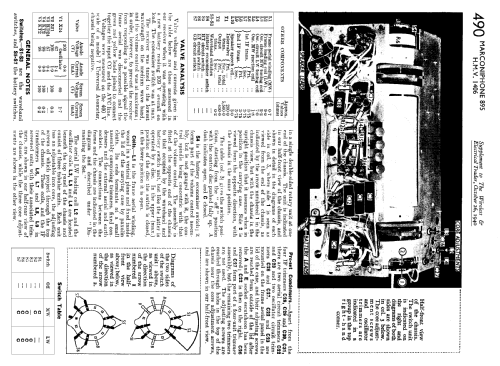

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (490)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
