• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141398

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• X17 W17 ZD17 N17

• Main principle
• Superheterodyne (common); ZF/IF 365 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 1.5 & 69 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Power out
• 0.08 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

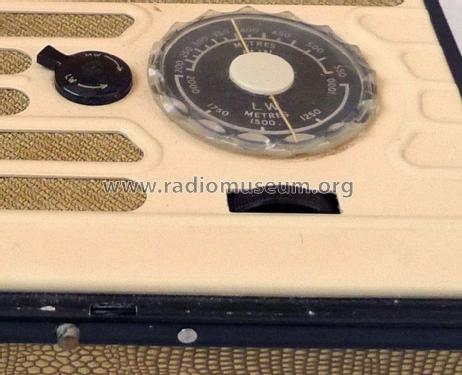

• Model: P20BX - Marconi Co. Marconiphone,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 170 x 90 x 120 mm / 6.7 x 3.5 x 4.7 inch

• Notes
• This set is the export version of model P20B.

• Price in first year of sale
• 2,700.00 BFr

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS) (Vol I Pre1953. Page 350.)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.

• Other Models

• Here you find 502 models, 335 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
