- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
- Year
- 1962 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 167737
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiogram RG95 - Marconi Co. Marconiphone,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 35.5 x 27.5 x 15.5 inch / 902 x 699 x 394 mm
- Notes
-

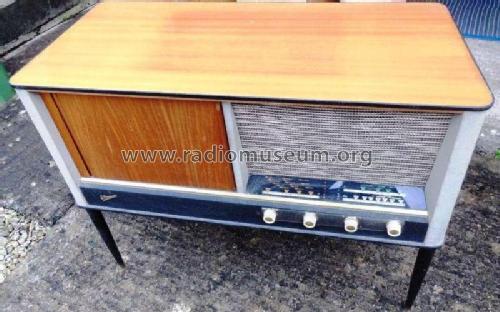

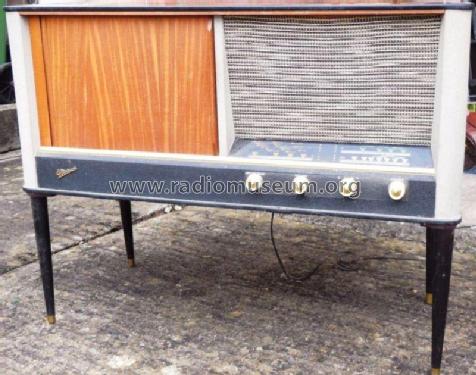

A console mono radiogram with an AM/FM tuner covering MW (188-550 metres), LW (1100-1920 metres) and VHF (87.2-101 MHz) and a BSR Monarch UA14 autochanger fitted with a TC8M cartridge. Elliptical 8 x 5 inch loudspeaker.
The Marconiphone RG96 Radiogram has a similar chassis.
- Source of data
- -- Schematic
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS)
- Literature/Schematics (2)
- - - Manufacturers Literature (Marconiphone Service Manual for the RG95 Radiogram)
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
