• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116876

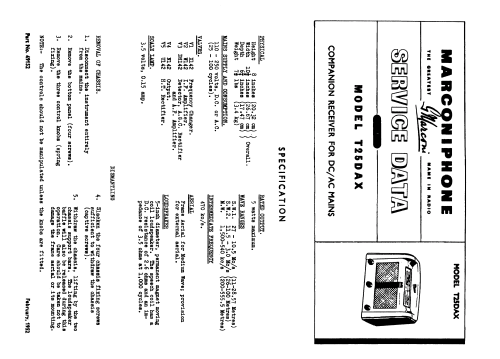

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• X142 W142 DH142 N142 U142

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110-120; 200-225; 226-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.8 cm = 5 inch

• Power out
• 5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: T25DAX - Marconi Co. Marconiphone,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 267 x 200 x 155 mm / 10.5 x 7.9 x 6.1 inch

• Notes
• This set is the export version of model T25DA. Dial lamp: 3.5V 0,15A

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
