- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)
- Year
- 1958 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 352162
FROM MODEL TA42A RM SCHEMATIC
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- 50-60 Hz, 195-255 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 10.5 inch = 26.7 cm
- Power out
- 5 W (max.)
- Material
- Wooden case
- from Radiomuseum.org

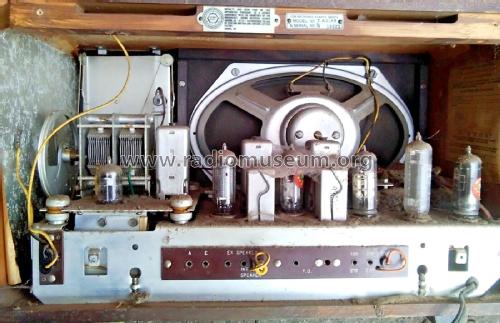

- Model: T42AY - Marconi Co. Marconiphone,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 440 x 270 x 210 mm / 17.3 x 10.6 x 8.3 inch
- Notes
-
Wavebands:-
- LW 900-2000 metres
- MW 187-575 metres
- FM 87.5-100MHz
Similar to Model T42A.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Author
- Model page created by Clive Forder. See "Data change" for further contributors.
