Tape Recorder 4210

Marconi Co. (Marconiphone, Marconi's Wireless Telegraph Co. Ltd.), GB (not tubes - see also HMV His Master's Voice)

Data
Forum
Pictures
Collections

  • Year
  • 1965/1966
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 305090

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • 1
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 3 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Tape Recorder 4210 - Marconi Co. Marconiphone,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 16.5 x 8 x 14.5 inch / 419 x 203 x 368 mm
  • Notes

  • A four-track three-speed tape recorder fitted with a Thorn type DC43 deck. Speeds 1⅞, 3¾ and 7½ ips. Elliptical 7 x 4 inch loudspeaker. Maximum spool size 7 inch. Moving coil recording level meter. Tape monitoring, straight through amplifier, solenoid operated automatic stop, remote pause on the microphone or by hand/foot accessory. Sockets for an external loudspeaker, radio input/output, two pickups and Aux for use with accessories including remote pause, microphone, for the playback of pre-recorded stereo tapes, second track monitoring and synchronization of an automatic slide projector.

    Similar to Ferguson 3214, HMV 2208 and Ultra 6206 tape recorder models.

  • Literature/Schematics (2)

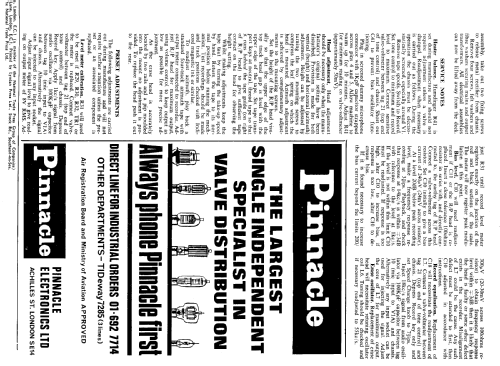

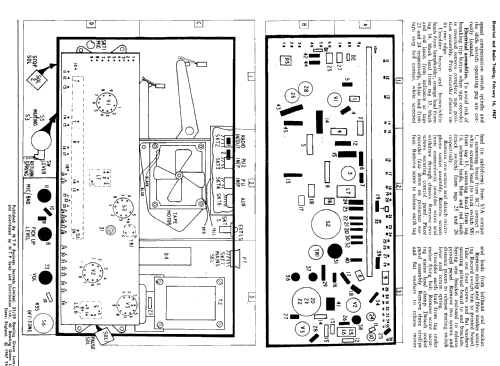

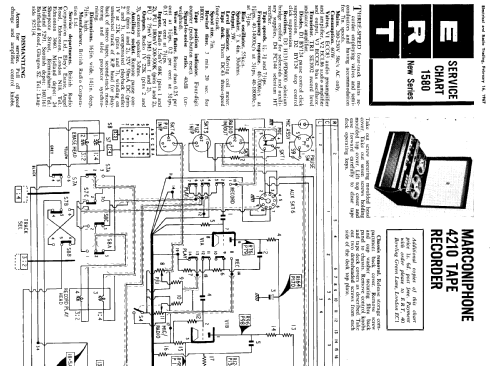

  • ERT Service Chart 1580 dated February 16 1967
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
