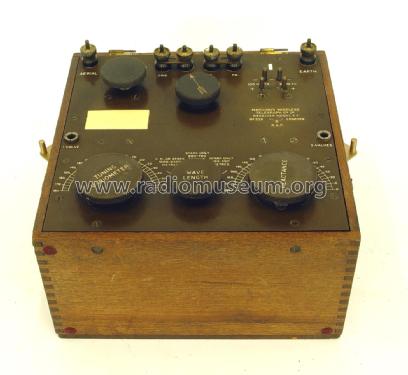

Receiver T f
Marconi's Wireless Telegraph Co. Ltd.
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi's Wireless Telegraph Co. Ltd.
- Year
- 1920 ??
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 304302
- Number of Tubes
- 3
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 6;100 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Receiver T f - Marconi's Wireless Telegraph
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 250 x 160 x 230 mm / 9.8 x 6.3 x 9.1 inch
- Notes
-
150 - 350 m Spark only
500 - 700 m Spark only
1000 - 2500 m C.W. or Spark
- Net weight (2.2 lb = 1 kg)
- 3.8 kg / 8 lb 5.9 oz (8.37 lb)
- Author
- Model page created by Musée des Radios Museum. See "Data change" for further contributors.
