Short Multiple Tuner 104R 66174
Marconi's Wireless Telegraph Co. Ltd.
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi's Wireless Telegraph Co. Ltd.
- Year
- 1915
- Category
- Radio module pre 1926 (not a part, not a key)
- Radiomuseum.org ID
- 306314

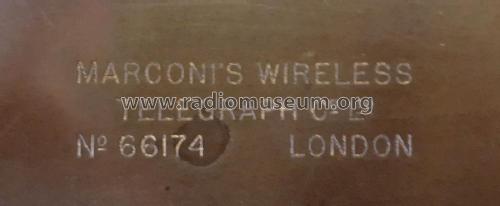

Collection privée (réf.: 1877)
Collection privée (réf.: 1877)
Collection privée (réf.: 1877)
- Main principle
- Tuner pre 1926 (not a wave trap)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Short Multiple Tuner 104R [66174] - Marconi's Wireless Telegraph
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13 x 9 x 9 inch / 330 x 229 x 229 mm
- Notes
-
This tuner is specially constructed for use with the Magnetic Detector and low resistance telephones Ref. No. 128R (headphones).
Wave Range : 250 - 1750 metres.
Front and top side Bakelite
Face avant et face supérieure en bakélite
- Net weight (2.2 lb = 1 kg)
- 13 lb 8 oz (13.5 lb) / 6.129 kg
- Mentioned in
- - - Manufacturers Literature (1915 Marconi Receiving and Measuring Instruments Catalogue)
- Author
- Model page created by Musée des Radios Museum. See "Data change" for further contributors.
- Other Models
-
Here you find 94 models, 92 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Marconi's Wireless Telegraph Co. Ltd.
Collections
The model Short Multiple Tuner is part of the collections of the following members.
Forum contributions about this model: Marconi's Wireless: Short Multiple Tuner 104R
Threads: 1 | Posts: 1
This model is identical with the Plain Tuner. I suggest to merge models.
Yours,
Nikolaus Löwe
Nikolaus Löwe, 28.Dec.20
