• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi's Wireless Telegraph Co. Ltd.

• Year
• 1920 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 257541

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Crystal or Solid State Detector

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Wavemeter M.G.I.E - Marconi's Wireless Telegraph

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 275 x 145 x 190 mm / 10.8 x 5.7 x 7.5 inch

• Notes

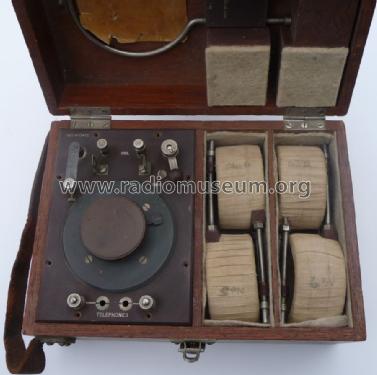

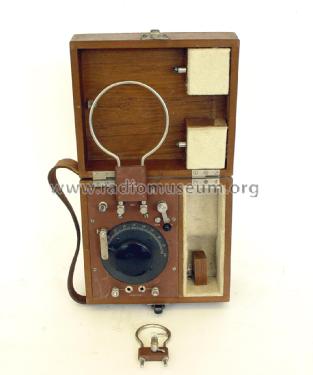

• Five different coils for fixing at the binding posts.

  ---

  Es sind 4 Spulen im Kasten und eine KW-Spule im Deckel.

  Der Umschalter ermöglicht die Wahl zwischen Kopfhörer und optischer Betrachtung mittels Lämpchen.

  See also Spanish model Ondametro M.G.I.E.

• Author
• Model page created by Wolfram Zylka. See "Data change" for further contributors.
