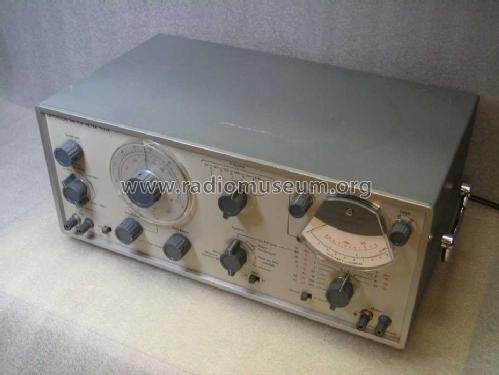

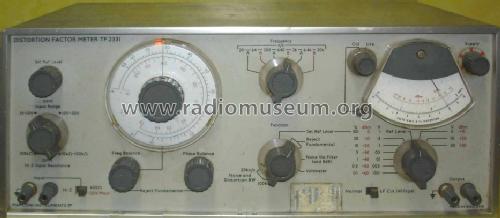

Distortion Factor Meter TF2331
Marconi Instruments, Marconi-Ekco (MI, MEI)
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Marconi Instruments, Marconi-Ekco (MI, MEI)
- Year
- 1966 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 100846
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Line / Batteries (any type) / 115; 220 / 18-45 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Distortion Factor Meter TF2331 - Marconi Instruments, Marconi-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 465 x 192 x 260 mm / 18.3 x 7.6 x 10.2 inch
- Notes
-
Distortion- and AC mV Meter, 20 Hz to 20 kHz, 1 mV to 30 V, asymmetric input (600 Ohm/Hi-Z) and output.
Mißt Verzerrungen bis herab zu 0,01% (laut Werbeschaltung Radioschau)
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Price in first year of sale
- 290.00 GBP
- Source of data
- -- Collector info (Sammler)
- Mentioned in
- Österreichische Radioschau, Heft 10, 1966, Seite 516
