Apollo G.P./S.S.B. Receiver N-01-2050-01

MIM, Marconi International Marine; Chelmsford Essex

Data

Forum

Pictures

Collections

Country
Great Britain (UK)

Manufacturer / Brand
MIM, Marconi International Marine; Chelmsford Essex

Year
1970–1982

Category
Commercial Receiver (may include amateur bands)

Radiomuseum.org ID
215029

Schematics

Apollo G.P./S.S.B. Receiver N-01-2050-01; MIM, Marconi (ID = 1212172) Commercial Re — MIM, Marconi Apollo G.P./S.S.B. Receiver N-01-2050-01 (2)
Ebay auction by user zdera 190534928487

Apollo G.P./S.S.B. Receiver N-01-2050-01; MIM, Marconi (ID = 1212154) Commercial Re — MIM, Marconi Apollo G.P./S.S.B. Receiver N-01-2050-01 (2)
Ebay auction by user zdera 190534928487

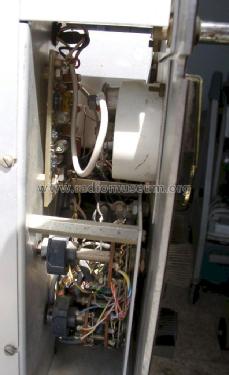

Apollo G.P./S.S.B. Receiver N-01-2050-01; MIM, Marconi (ID = 1212165) Commercial Re — MIM, Marconi Apollo G.P./S.S.B. Receiver N-01-2050-01 (2)
Ebay auction by user zdera 190534928487

Apollo G.P./S.S.B. Receiver N-01-2050-01; MIM, Marconi (ID = 1212168) Commercial Re — MIM, Marconi Apollo G.P./S.S.B. Receiver N-01-2050-01 (2)
Ebay auction by user zdera 190534928487

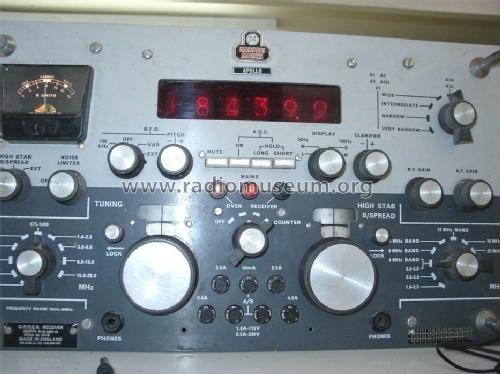

Apollo G.P./S.S.B. Receiver N-01-2050-01; MIM, Marconi (ID = 1212170) Commercial Re — MIM, Marconi Apollo G.P./S.S.B. Receiver N-01-2050-01 (2)
Ebay auction by user zdera 190534928487

Apollo G.P./S.S.B. Receiver N-01-2050-01; MIM, Marconi (ID = 1212174) Commercial Re — MIM, Marconi Apollo G.P./S.S.B. Receiver N-01-2050-01 (2)
Ebay auction by user zdera 190534928487

Apollo G.P./S.S.B. Receiver N-01-2050-01; MIM, Marconi (ID = 1212176) Commercial Re — MIM, Marconi Apollo G.P./S.S.B. Receiver N-01-2050-01 (2)
Ebay auction by user zdera 190534928487

Apollo G.P./S.S.B. Receiver N-01-2050-01; MIM, Marconi (ID = 1212178) Commercial Re — MIM, Marconi Apollo G.P./S.S.B. Receiver N-01-2050-01 (2)
Ebay auction by user zdera 190534928487

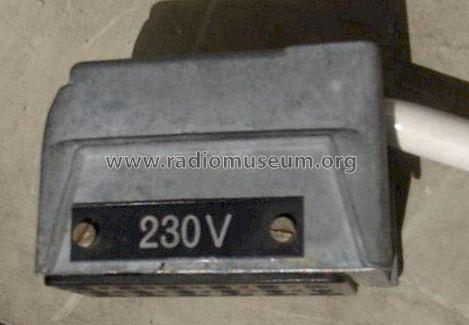

Apollo G.P./S.S.B. Receiver N-01-2050-01; MIM, Marconi (ID = 1212180) Commercial Re — MIM, Marconi Apollo G.P./S.S.B. Receiver N-01-2050-01 (2)
Ebay auction by user zdera 190534928487

Apollo G.P./S.S.B. Receiver N-01-2050-01; MIM, Marconi (ID = 1212182) Commercial Re — MIM, Marconi Apollo G.P./S.S.B. Receiver N-01-2050-01 (2)
Ebay auction by user zdera 190534928487

Apollo G.P./S.S.B. Receiver N-01-2050-01; MIM, Marconi (ID = 1212183) Commercial Re — MIM, Marconi Apollo G.P./S.S.B. Receiver N-01-2050-01 (2)
Ebay auction by user zdera 190534928487

Apollo G.P./S.S.B. Receiver N-01-2050-01; MIM, Marconi (ID = 1212185) Commercial Re — MIM, Marconi Apollo G.P./S.S.B. Receiver N-01-2050-01 (2)
Ebay auction by user zdera 190534928487

Technical Specifications

Number of Tubes
0

Valves / Tubes
unknown_Tube

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superhet, double/triple conversion; ZF/IF 1100 & 100 kHz

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 105-130; 210-260 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Metal case

from Radiomuseum.org
Model: Apollo G.P./S.S.B. Receiver N-01-2050-01 - MIM, Marconi International

Shape
Tablemodel, low profile (big size).

Notes
Marconi Marine Apollo G.P./S.S.B. Receiver Identity N-01-2050-01;
15 kHz - 28 MHz in ten ranges, A1, A2 & A3, digital read-out by Nixie tubes, single conversion superhet from 15 kHz - 1.400 kHz, above them operating as double conversion superhet. 24 programmable preset frequencies.
