- Country
- Belgium
- Manufacturer / Brand
- Marconiphone; Belgium
- Year
- 1940 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 79944
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 140; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 inch = 43.2 cm
- Power out
- 4.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

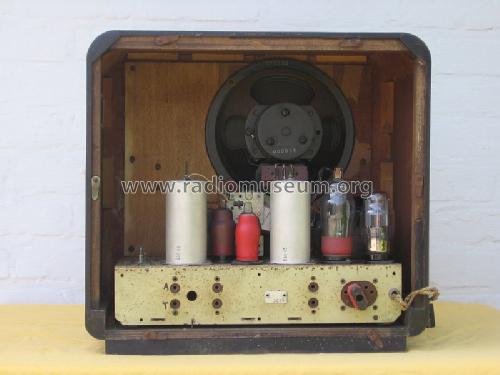

- Model: 101A - Marconiphone; Belgium
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 410 x 390 x 235 mm / 16.1 x 15.4 x 9.3 inch
- Notes
-
- This radio contains the same chassis as SBR Super Ondolina 342A.
- A usable schematic can be found under SBR 340A.
- Net weight (2.2 lb = 1 kg)
- 9.5 kg / 20 lb 14.8 oz (20.925 lb)
- Author
- Model page created by Patrick Mergan † Dec. 21, 2009. See "Data change" for further contributors.
