"Roadmap" Spark Key Type C
Marconi Wireless Telegraph Co. of America
- Country
- United States of America (USA)
- Manufacturer / Brand
- Marconi Wireless Telegraph Co. of America
- Year
- 1912
- Category
- Morse-Equipment & TTY, RTTY, TDD etc.
- Radiomuseum.org ID
- 199186
-
- alternative name: American Marconi || Marconi, American
- Brand: Marconiphone
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: "Roadmap" Spark Key Type C - Marconi Wireless Telegraph Co.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 5.75 x 2 x 2.7 inch / 146 x 51 x 69 mm
- Notes

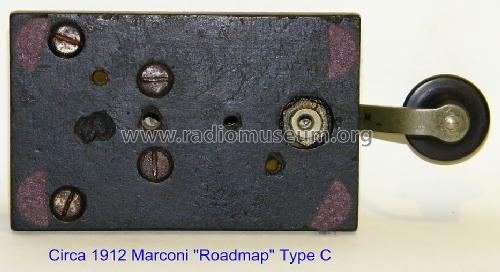

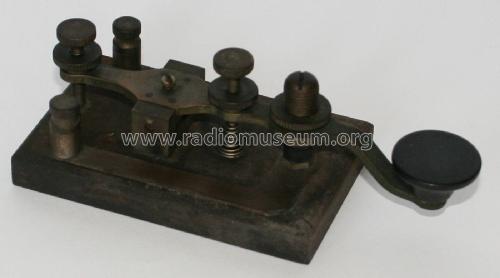

- One of the first products of the American Marconi Company was this "Roadmap" Spark Key. c. 1912. Has a 'mud' (electrose) base. This spark key was nicknamed the "roadmap" because of the conductors traced out on its base like a map. There are at least 2 different variations of the Roadmap Key. This variation was the Type C key supplied with the Type P-4 2 KW Panel set, the P-5 1/2 KW set, and the P-9 1/4 KW set.
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
