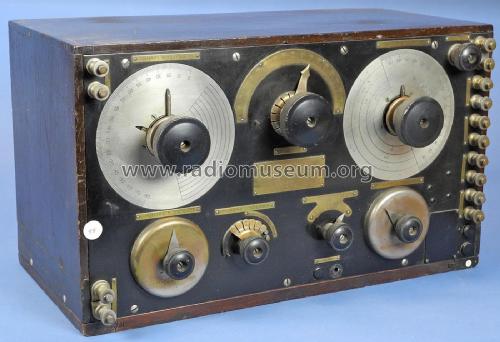

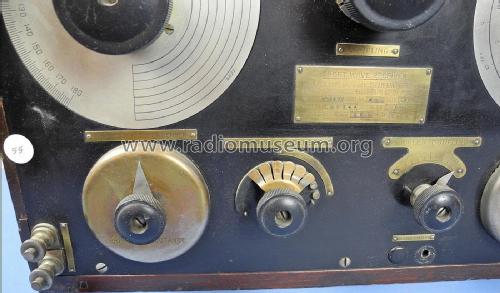

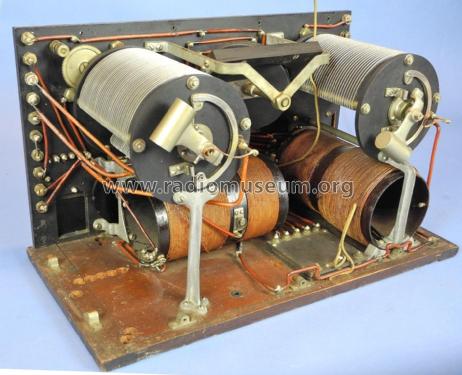

Short Wave Receiver CM 294A
Marconi Wireless Telegraph Co. of America
- Country
- United States of America (USA)
- Manufacturer / Brand
- Marconi Wireless Telegraph Co. of America
- Year
- 1917
- Category
- Radio module pre 1926 (not a part, not a key)
- Radiomuseum.org ID
- 292290
-
- alternative name: American Marconi || Marconi, American
- Brand: Marconiphone
- Main principle
- Tuner pre 1926 (not a wave trap)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material

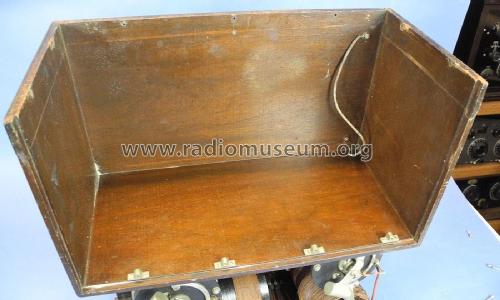

- Wooden case
- from Radiomuseum.org
- Model: Short Wave Receiver CM 294A - Marconi Wireless Telegraph Co.
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 20 x 12 x 12 inch / 508 x 305 x 305 mm
- Notes
-
1917 Marconi CM294A Short Wave Wireless Receiver
Marconi Wireless Telegraph Co. of America
Mfg. for Navy Dept. (Bureau Steam Engineering)
Wavelength Range: 250 to 3100 Meters
- Net weight (2.2 lb = 1 kg)
- 34 lb (34 lb 0 oz) / 15.436 kg
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
- Other Models
-
Here you find 31 models, 31 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
