• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105073

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 35L6 35Z4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 125-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

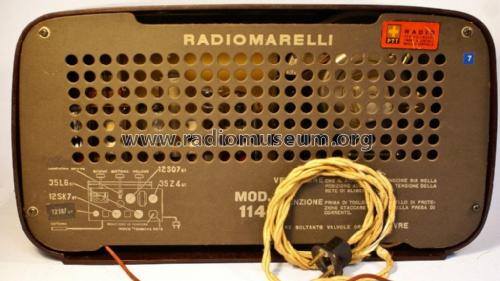

• Model: 114D - Marelli Radiomarelli; Sesto

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 230 x 170 mm / 16.5 x 9.1 x 6.7 inch

• Notes

• Sintonia ad induttori variabili.

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (13° edizione, 1952)

• Literature/Schematics (1)
• Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 74-75)

• Literature/Schematics (2)
• -- Schematic (Da: “Radio Libro” D.E. Ravalico 13° edizione Hoepli 1952.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
