• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1951 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105082

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6SK7 6SQ7 6V6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 135; 160; 190; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 3.8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

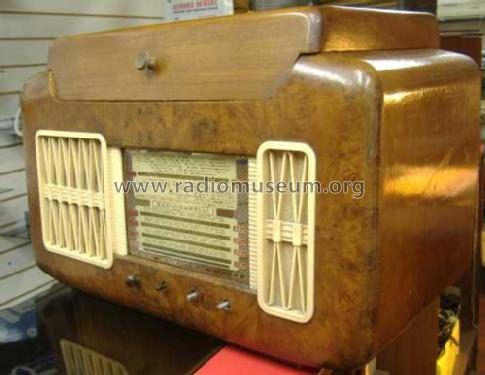

• Model: 119 [tube 6SK7] - Marelli Radiomarelli; Sesto

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 630 x 370 x 360 mm / 24.8 x 14.6 x 14.2 inch

• Notes
• Radiofonografo soprammobile. Gamme d'onda: medie e 4 corte.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Source of data
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 120-121)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
