123 6 valvole

Marelli (Radiomarelli); Sesto San Giovanni (MI)

Data

Forum

Pictures

Collections

Country
Italy

Manufacturer / Brand
Marelli (Radiomarelli); Sesto San Giovanni (MI)

Year
1951/1952

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
92635

Schematics

123; Marelli Radiomarelli (ID = 339182) Radio — Marelli Radiomarelli 123 (3)

123; Marelli Radiomarelli (ID = 194306) Radio — Marelli Radiomarelli 123 (1)

123; Marelli Radiomarelli (ID = 194307) Radio — Marelli Radiomarelli 123 (1)

123; Marelli Radiomarelli (ID = 194308) Radio — Marelli Radiomarelli 123 (1)

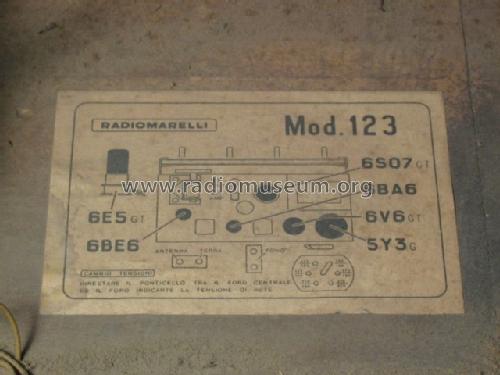

123; Marelli Radiomarelli (ID = 194309) Radio — Marelli Radiomarelli 123 (1)

123; Marelli Radiomarelli (ID = 502790) Radio — Marelli Radiomarelli 123 (2)

123; Marelli Radiomarelli (ID = 502791) Radio — Marelli Radiomarelli 123 (2)

123; Marelli Radiomarelli (ID = 502792) Radio — Marelli Radiomarelli 123 (2)

123; Marelli Radiomarelli (ID = 1216249) Radio — Marelli Radiomarelli 123 (1)

123; Marelli Radiomarelli (ID = 1394955) Radio — Marelli Radiomarelli 123 (1)

123; Marelli Radiomarelli (ID = 1403139) Radio — Marelli Radiomarelli 123 (1)

123; Marelli Radiomarelli (ID = 1568816) Radio — Marelli Radiomarelli 123 (1)

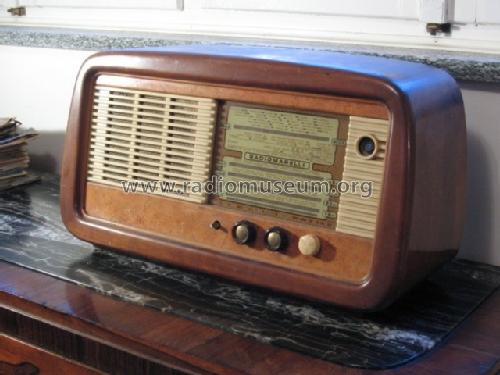

Radiomarelli 123 vista frontale

123; Marelli Radiomarelli (ID = 1568817) Radio — Marelli Radiomarelli 123 (1)

123; Marelli Radiomarelli (ID = 1568819) Radio — Marelli Radiomarelli 123 (1)

123; Marelli Radiomarelli (ID = 1568821) Radio — Marelli Radiomarelli 123 (1)

123; Marelli Radiomarelli (ID = 1568824) Radio — Marelli Radiomarelli 123 (1)

123; Marelli Radiomarelli (ID = 1568828) Radio — Marelli Radiomarelli 123 (1)

123; Marelli Radiomarelli (ID = 1568832) Radio — Marelli Radiomarelli 123 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
6

Valves / Tubes
6BE6 6BA6 6SQ7GT 6V6GT 6E5GT 5Y3GT

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast plus more than 2 Short Wave bands.

Power type and voltage
Alternating Current supply (AC) / 110; 125; 135; 150; 175; 220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

Power out
3.8 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: 123 [6 valvole] - Marelli Radiomarelli; Sesto

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
600 x 300 x 220 mm / 23.6 x 11.8 x 8.7 inch

Notes
Bande OC: 19mt, 25mt, 31mt e 49mt.

Vedi Radiomarelli 123 con 5 valvole

Source of data
Guida Pratica Antique Radio III (2000)

Literature/Schematics (1)
Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (13° edizione, 1952)

Author
Model page created by Marco Gilardetti. See "Data change" for further contributors.

Other Models
Here you find 487 models, 378 with images and 300 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Marelli (Radiomarelli); Sesto San Giovanni (MI)
