• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97024

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6AT6 6BE6 6BA6 35QL6 35X4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

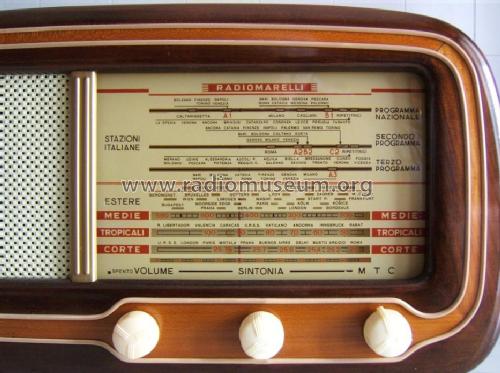

• Model: 136 - Marelli Radiomarelli; Sesto

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 270 x 170 mm / 19.7 x 10.6 x 6.7 inch

• Notes

• Serie ANIE.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 29,000.00 ITL

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• -- Original prospect or advert (L'antenna, n.12, dicembre 1953)

• Author
• Model page created by Rudy Vande Loo. See "Data change" for further contributors.
