- Country
- Italy
- Manufacturer / Brand
- Marelli (Radiomarelli); Sesto San Giovanni (MI)
- Year
- 1945
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 96635

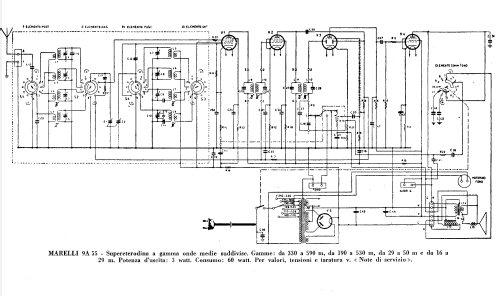

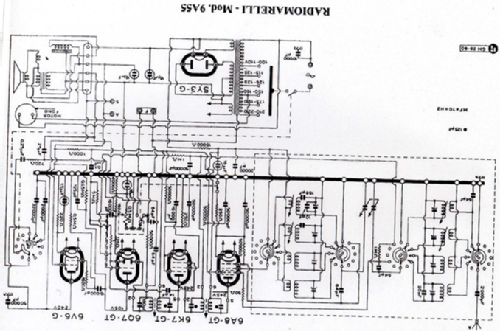

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 100-110; 115-125; 126-135; 150-160; 175-190; 210-220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

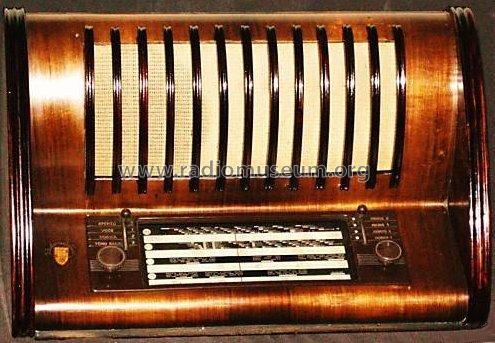

- Model: 9A55 - Marelli Radiomarelli; Sesto
- Shape

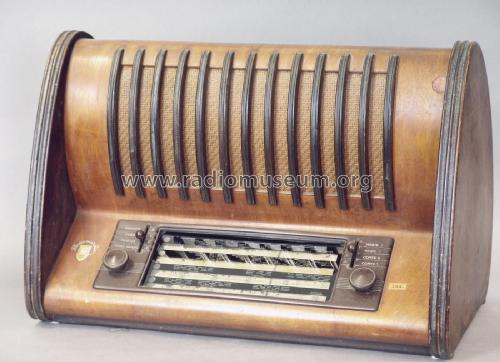

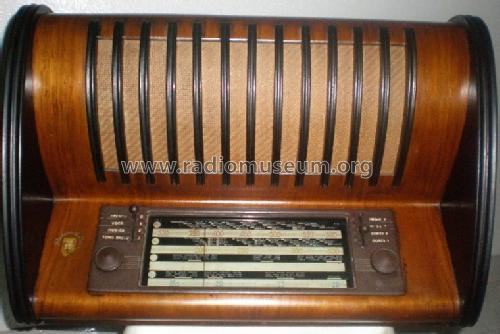

- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 550 x 360 x 330 mm / 21.7 x 14.2 x 13 inch
- Notes
-

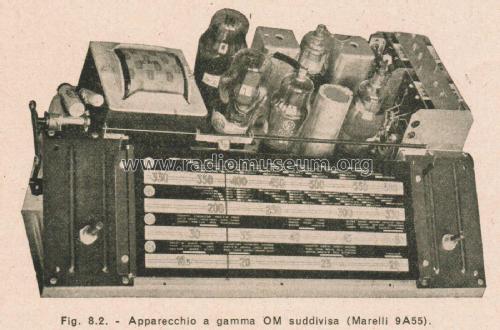

Gamme d'onda = 2× OM (OM suddivise) e 2× OC.

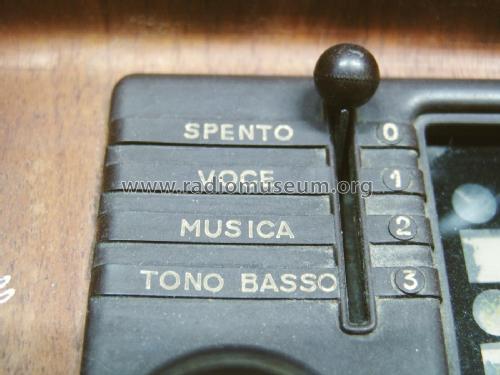

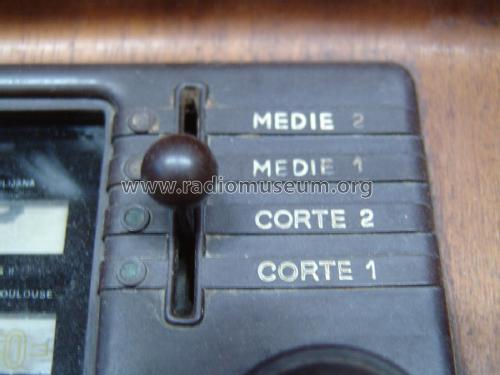

Controllo di tono a 4 posizioni: Spento - Musica - Voce - Tono Basso.

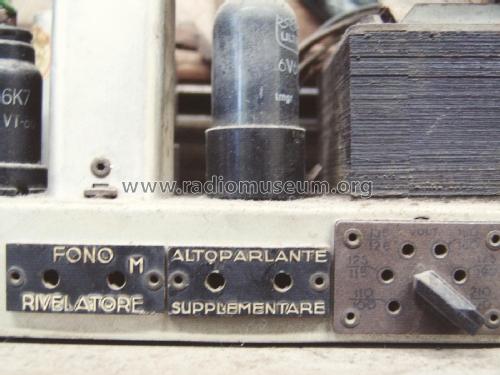

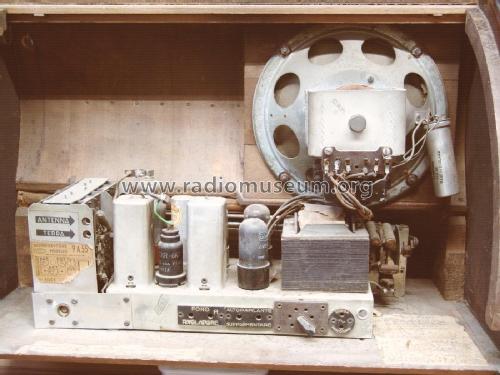

Presa per altoparlante supplementare collegata al primario del trasformatore di uscita.
Ingresso per giradischi. Presa per alimentazione del motore del giradischi.
- Source of data
- Guida Pratica Antique Radio III (2000)
- Literature/Schematics (1)
- Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 141-143)
- Literature/Schematics (2)
- Il Radio Libre D.E. Ravalico 9a edizione 1947
