Alcor Ch= 44

• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30614

• Picture

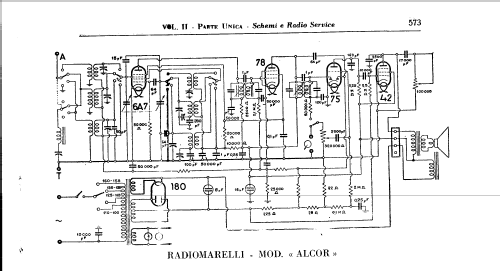

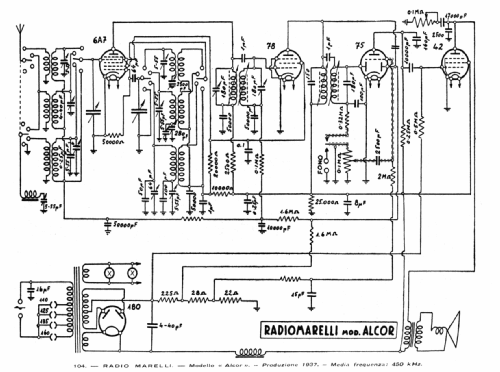

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

Audio (to hear)

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 75 42 80

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-160 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Alcor Ch= 44 - Marelli Radiomarelli; Sesto

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 400 x 440 x 280 mm / 15.7 x 17.3 x 11 inch

• Notes

• Controllo di tono. Ingresso Fono.

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Literature/Schematics (1)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

• Literature/Schematics (2)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
