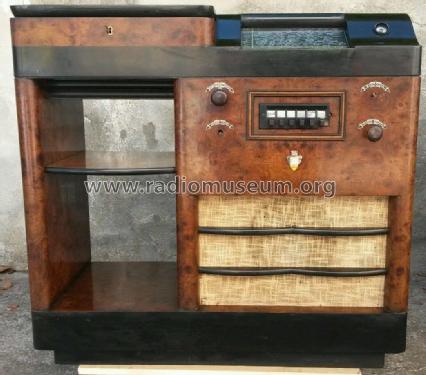

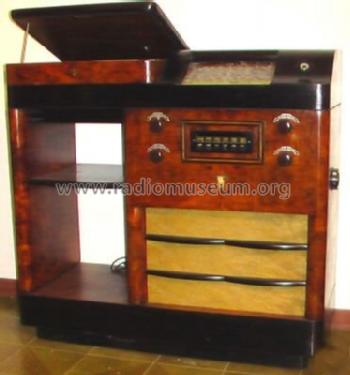

Aldebaran Tipo RD71/Fo Fono

• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30629

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6A8 6K7 6H6 6J7 6G5 6L6 5X4

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 100-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 5.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Aldebaran Tipo RD71/Fo [Fono] - Marelli Radiomarelli; Sesto

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 900 x 850 x 360 mm / 35.4 x 33.5 x 14.2 inch

• Notes

• Tastiera per la sintonia automatica di 6 emittenti.

• Price in first year of sale
• 2,950.00 ITL

• Source of data
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

• Literature/Schematics (2)
• -- Original prospect or advert (L'Antenna 15 febbraio 1939)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
