- Country
- Italy
- Manufacturer / Brand
- Marelli (Radiomarelli); Sesto San Giovanni (MI)
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30628
scala parlante non originale
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 450 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 100-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 5.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Aldebaran - Marelli Radiomarelli; Sesto
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Tastiera per la sintonia automatica di 6 emittenti.
- Price in first year of sale
- 1,900.00 ITL
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Literature/Schematics (1)
- Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
- Literature/Schematics (2)
- -- Original prospect or advert (L'Antenna 15 febbraio 1939)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
- Other Models
-
Here you find 487 models, 378 with images and 300 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Marelli (Radiomarelli); Sesto San Giovanni (MI)
Collections
The model Aldebaran is part of the collections of the following members.
Forum contributions about this model: Marelli Radiomarelli: Aldebaran
Threads: 2 | Posts: 6
Il ricevitore Aldebaran nella versione soprammobile montava come finale una 6V6 e come raddrizzatrice una 5Y3. Nella versione radiofonografo la potenza d'uscita passa da 3 watt a 5,5 con la sostituzione della finale con una 6L6 e la raddrizzatrice con la 5X4. Anche l'altoparlante viene sostituito con uno di dimensioni maggiori.
Antonio Maida, 18.Dec.08

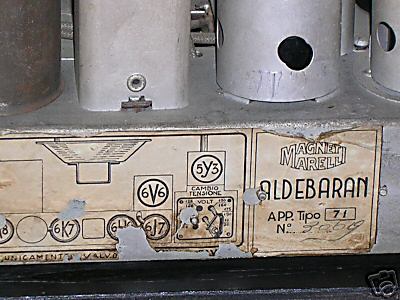

On the present ebaY Italia, (see item # 320051336584), there is a model 1938 Marelli Aldebaran which has one photo depicting the output tube as 6V6 and the rectifier as 5Y3.
Is it possible there may have been a chassis revision to the model. I attach a copy of the digital photo from the rear of the chassis. The label appears to be an original part of the radio which identifies the tube layout.
Respectfully,
Robert
Attachments
- Aldebaran tube layout (32 KB)
Robert Sarbell † 22.3.22, 25.Nov.06
