Assab

Marelli (Radiomarelli); Sesto San Giovanni (MI)

Data
Forum
Pictures
Collections

  • Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 30626

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

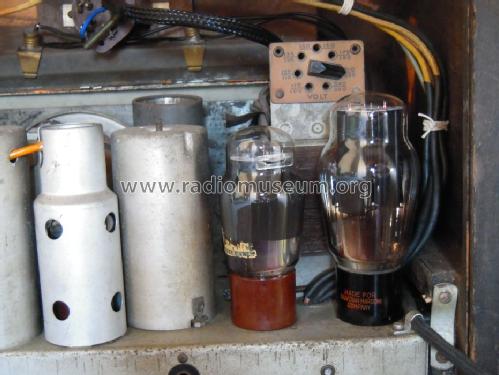

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 450 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 115; 126; 150; 190; 210; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
  • Power out
  • 4.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Assab - Marelli Radiomarelli; Sesto
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 420 x 520 x 260 mm / 16.5 x 20.5 x 10.2 inch
  • Notes

  • Ingresso per giradischi. Pannello copertura altoparlante in striscie di pelle bicolori tese in modo elicoidale.
    Uno schema riporta 5X5 come raddrizzatrice; il secondo schema presente indica quella corretta, la 5X4.

    One schematic quotes a 5X5 rectifier tube. This must be an error. Correct is 5X4.

  • Net weight (2.2 lb = 1 kg)
  • 18 kg / 39 lb 10.4 oz (39.648 lb)
  • Price in first year of sale
  • 1,450.00 ITL
  • Literature/Schematics (2)
  • -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
