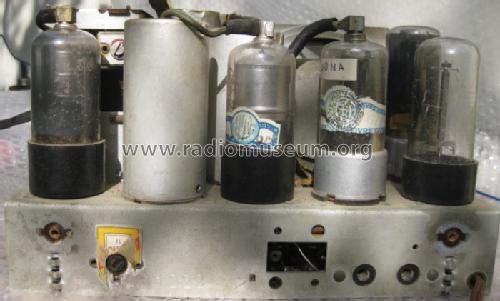

Fido II (2) RD76L

• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1940–1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110026

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12A8GT 12K7GT 12Q7GT 35L6GT 35Z4GT

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Fido II RD76L - Marelli Radiomarelli; Sesto

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 215 x 127 x 120 mm / 8.5 x 5 x 4.7 inch

• Notes

• Ricevitore per sole onde medie 550-210 mt, sintonizzazione ad induttanza variabile. Con opportuno adattatore a resistenza è possibile alimentarlo a 125 140 160 225 volt ac/dc

  Il telaio è collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• - - Data from my own collection

• Literature/Schematics (1)
• -- Schematic (La Riparazione degli Apparecchi Radio, Delforno - Colciago, Italy 1941)

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
