• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97416

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BA6 12AT7 12AJ8 19T8 35QL6

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

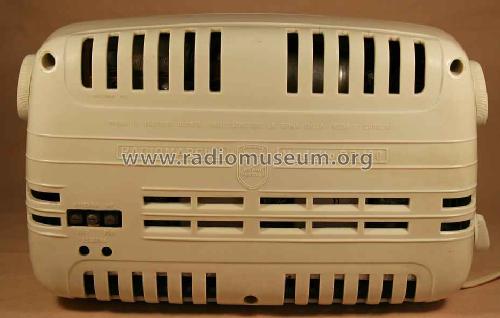

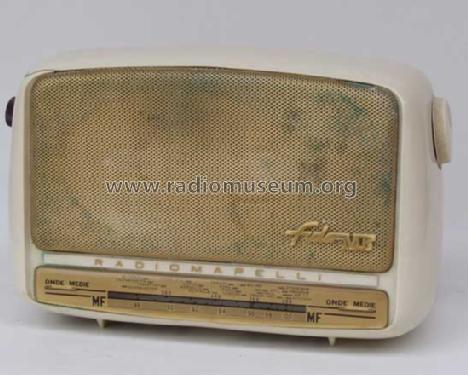

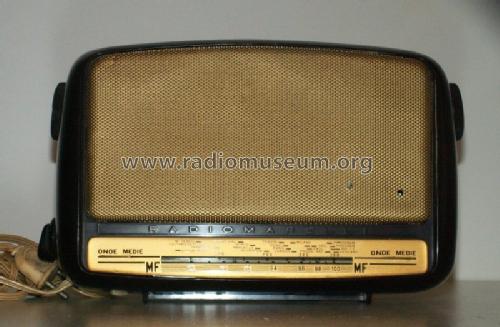

• Model: Fido MF RD190 - Marelli Radiomarelli; Sesto

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 270 x 170 x 110 mm / 10.6 x 6.7 x 4.3 inch

• Notes
• Serie ANIE MF. Altoparlante magnetodinamico ellittico di dimensioni 10 x 15 cm. 1 raddrizzatore metallico.

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Price in first year of sale
• 28,500.00 LIT

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Rino Ferro † 2008. See "Data change" for further contributors.
