• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81477

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 24 24 24 27 45 45 80

• Main principle
• TRF without regeneration

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 100-175 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

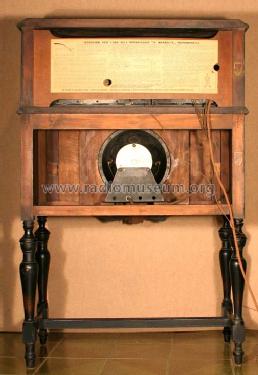

• Model: Musagete I - Marelli Radiomarelli; Sesto

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 720 x 1080 x 350 mm / 28.3 x 42.5 x 13.8 inch

• Notes
• Sintonia a variometro. Antine chiusura comandi e altoparlante

• Net weight (2.2 lb = 1 kg)
• 42 kg / 92 lb 8.2 oz (92.511 lb)

• Price in first year of sale
• 2,700.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• La moderna Supereterodina, Ravalico, 1938 (pag. 371)

• Author
• Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
