• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81533

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6K7 6SA7 6BN8G 6J7 6G5 6L6 5X4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 42-50 Hz: 100-260 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

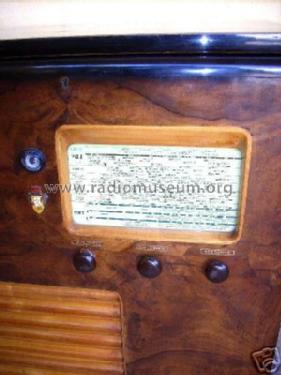

• Model: Nilo Azzurro 78 FO - Marelli Radiomarelli; Sesto

• Shape
• Console: Chairside Radio.

• Dimensions (WHD)
• 670 x 930 x 370 mm / 26.4 x 36.6 x 14.6 inch

• Notes

• Onde Lunghe, Medie e 3 gamme di onde Corte. Giradischi a 78 giri con dispositivo automatico di fissaggio della puntina.

  I primi modelli non avevano l'occhio magico. Era disponibile la versione soprammobile denominata 7 A 96.

• Price in first year of sale
• 4,000.00 ITL

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• -- Original prospect or advert (L'Antenna 15 settembre 1940)

• Literature/Schematics (1)
• -- Original prospect or advert (L'Antenna la Radio, numero 4 febbraio 1941)

• Author
• Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
