RD126

• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174663

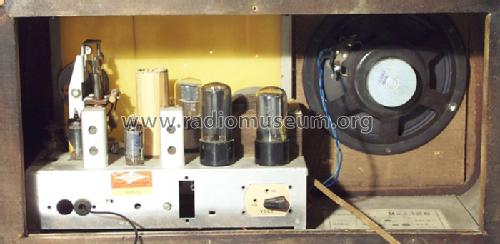

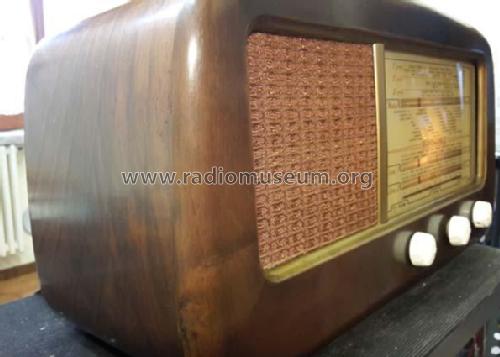

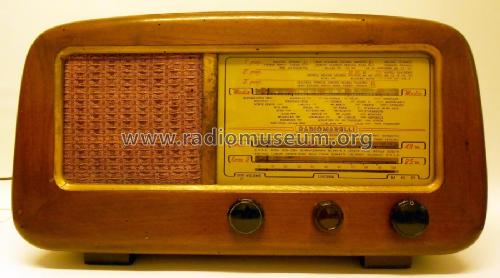

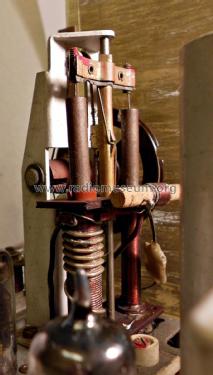

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6SQ7 35L6 5Y3GR

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Power out
• 3.5 W (max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RD126 - Marelli Radiomarelli; Sesto

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 275 x 200 mm / 19.7 x 10.8 x 7.9 inch

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Source of data
• Guida Pratica Antique Radio III (2000)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
