• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1953–1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116704

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BE6 6BA6 6AT6 6V6GT 6E5G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 135; 160; 190; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

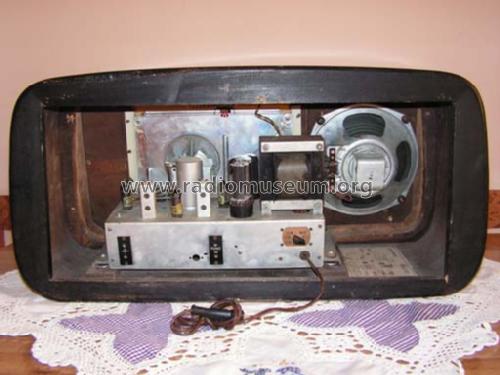

• Model: RD141 - Marelli Radiomarelli; Sesto

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 680 x 360 x 260 mm / 26.8 x 14.2 x 10.2 inch

• Notes

• Gamme d'onda: medie, 3 corte, tropicali.
  Wave bands: BC, 3x SW, tropical.

  Prezzo 1955: 58.500 ITL.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 58,710.00 ITL

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• Catalogo ANIE (1955-56)

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• -- Original prospect or advert (L'antenna, n.12, dicembre 1953)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
