• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174769

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BE6 12BA6 12AT6 35QL6 6E5 35X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-240V Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Power out
• 3.5 W (max.)

• Material
• Bakelite case

• from Radiomuseum.org

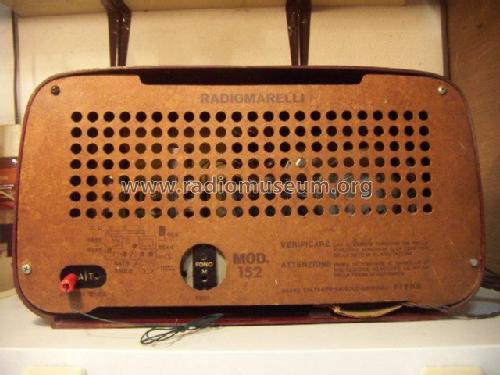

• Model: RD152 - Marelli Radiomarelli; Sesto

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 230 x 140 mm / 16.1 x 9.1 x 5.5 inch

• Notes

• Gamme d'onda : OM-OC e Tropicali.

  Guida Pratica Antique Radio III indica solo 5 valvole anziché 6, omettendo l'occhio magico.

• Source of data
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
