• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1953

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 275571

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 12AT7 6BK7 6CB6 6AU6 6AL5 6AT6 6AQ5 6CB6 6CB6 6CB6 6CB6 unknown_Tube 12AX7 12AU7 6BL7GT 6C4 6AL5 12AU7 6AV5GT 6W4GT 1B3GT 5X4G 5X4G 17BP4A or 17QP4

• Main principle
• Superhet with RF-stage; ZF/IF 45750 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line (AC, UC or DC not known)

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Power out
• 4 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

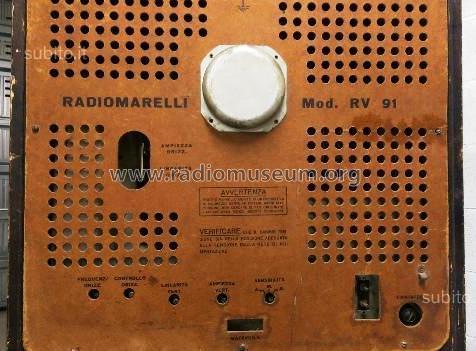

• Model: Televisore RV91 [Dalla matricola 2406 alla 3500.] - Marelli Radiomarelli; Sesto

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Televisore in bianco/nero con sola VHF. Cinescopio da 17 pollici con deflessione 70°.
  Consuno 200 W.
  Da notare che tutti gli schemi hanno l'intestazione "Magneti Marelli"

• Price in first year of sale
• 292,225.00 ITL

• Mentioned in
• -- Original prospect or advert (L'antenna, n.12, dicembre 1953)

• Literature/Schematics (1)
• - - Manufacturers Literature ("Schemario Radiomarelli" 1963 pag. 70)

• Literature/Schematics (2)
• -- Schematic (“Televisori Commerciali” E. Costa U. Hoepli editore, vol. I, II edizione 1962.)

• Author
• Model page created by Giancarlo Colella. See "Data change" for further contributors.
