• Country
• Italy

• Manufacturer / Brand
• Marelli (Radiomarelli); Sesto San Giovanni (MI)

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30611

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6A7 78 75 56 45 45 5Z3

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

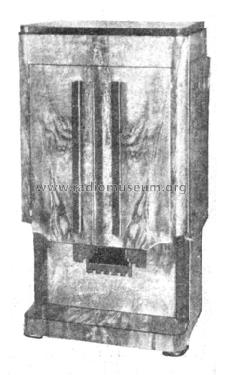

• Model: Samaveda - Marelli Radiomarelli; Sesto

• Shape
• Console: Chairside Radio.

• Notes

• Indicatore ottico di sintonia.
  Meter.

  con o senza fonografo

• Price in first year of sale
• 3,200.00 LIT

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• La moderna Supereterodina, Ravalico, 1938 (pag. 372)

• Literature/Schematics (1)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
