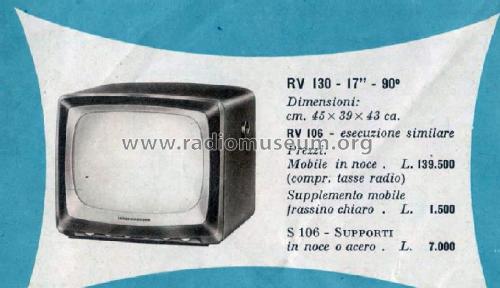

Televisore RV130
Marelli (Radiomarelli); Sesto San Giovanni (MI)
- Country
- Italy
- Manufacturer / Brand
- Marelli (Radiomarelli); Sesto San Giovanni (MI)
- Year
- 1960 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 346480
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BK7A 12AT7 6CB6 6CB6 6AU6 6AU8 6AU6 6T8 6AQ5 6CS6 6BN8 6SN7GT 6BQ6 6AX4GT 1B3 5X4G 17AVP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110-235 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Televisore RV130 - Marelli Radiomarelli; Sesto
- Notes
-
Televisore in bianco/nero con sola VHF. Cinescopio da 17 pollici.
Utilizza lo stesso circuito del modello RV131.
- Mentioned in
- -- Schematic (“Televisori Commerciali” E. Costa U. Hoepli editore, III edizione, 1960.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
