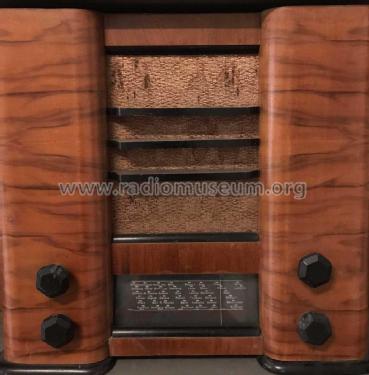

Splender bateriový speciál M36
Markofon-Radio, Ing. Markov a Spol; Brno
- Country
- Czechoslovakia
- Manufacturer / Brand
- Markofon-Radio, Ing. Markov a Spol; Brno
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 344213
In courtesy of Tamáš Németh
In courtesy of Tamáš Németh
In courtesy of Tamáš Németh
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 1.5 & 3 & 4 & 120 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Splender bateriový speciál M36 - Markofon-Radio, Ing. Markov a
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 400 x 360 x 250 mm / 15.7 x 14.2 x 9.8 inch
- Author
- Model page created by Gabriel Toth. See "Data change" for further contributors.
