• Country
• United States of America (USA)

• Manufacturer / Brand
• Martel Electronics (Telmar); Los Angeles (CA), New York (NY), Chicago (IL)

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239368

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6AQ8 6AQ8 6AQ8 6BA6 6BA6 6BA6 6BA6 6BE6 6BM8 6BM8 6BM8 6BM8 12AX7 12AX7 12AX7 6R-E13

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: FAX-200C - Martel Electronics Telmar; Los

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 23.5 x 5 x 11 inch / 597 x 127 x 279 mm

• Notes

• Stereo receiver.

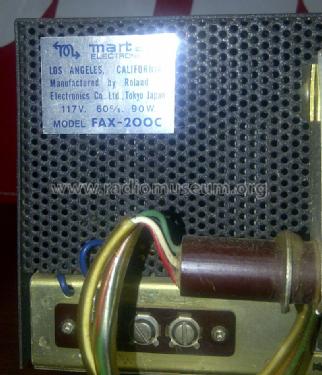

  Made in Japan by Roland Electronics Co. Ltd.

• Net weight (2.2 lb = 1 kg)
• 23 lb 13 oz (23.812 lb) / 10.811 kg

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
