ESL Speaker System Monolith

MartinLogan, Ltd.; Lawrence, KS

Data
Forum
Pictures
Collections

  • Year
  • 1983
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 280010

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: ESL Speaker System Monolith - MartinLogan, Ltd.; Lawrence,
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 635 x 1829 x 330 mm / 25 x 72 x 13 inch
  • Notes

  • MartinLogan Electrostatic Loudspeaker System (ESL) Model Monolith.
    Frequency Response: 28 - 24000Hz +2dB, -3dB
    Horizontal/Vertical Dispersion: 30o/48"(121,92cm) line source
    Sensitivity: 90dB W/m
    Recommended Amplifier: 20-500 Watts per channel
    Crossover Frequency: 75-125Hz, 100Hz centre. 6dB per Octave, phase coherent
    Two-Way Hybrid System:
    High Frequency Transducer:
    48" (121,92cm) CLSTM electrostatic transducer
    Low Frequency Transducer:
    12" (30,5cm)

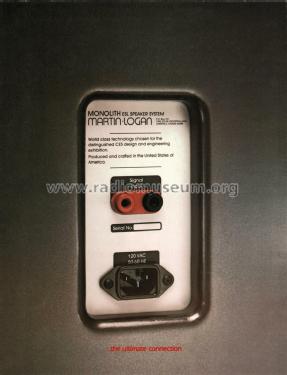

    Inputs: 5-way binding posts

  • Net weight (2.2 lb = 1 kg)
  • 74.9 kg / 164 lb 15.6 oz (164.978 lb)
  • Price in first year of sale
  • 4,850.00 USD
  • Mentioned in
  • -- Original prospect or advert (Martin Logan Flyer)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
