7 Transistor 7YR-10A
Marvel (brand name), Japan
- Country
- Japan
- Manufacturer / Brand
- Marvel (brand name), Japan
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153854
ebay.com 254067413324 seller andersen5
ebay.com 254067413324 seller andersen5
ebay.com 254067413324 seller andersen5
ebay.com 254067413324 seller andersen5
ebay.com 254067413324 seller andersen5
ebay.com 254067413324 seller andersen5
Composed pic. just as type proof!
Front View
Back View
Right View
Back View

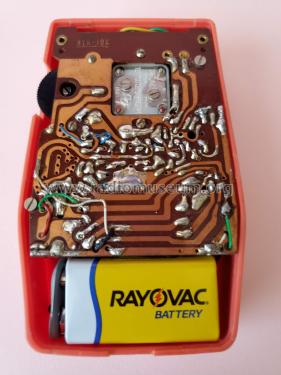

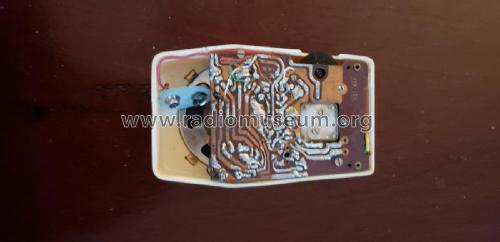

Inside View
Insiode Label

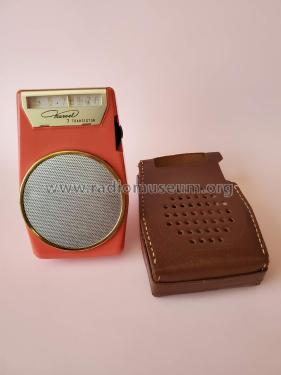

With Case
In The Case
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 7 Transistor 7YR-10A - Marvel brand name, Japan
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
- Marvel 7YR-10A 7 Transistor;
Round speaker grille, dial scale tuning, hinged stand, earphones jack, sold in box with suitable black leather case.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
