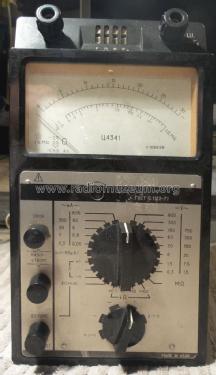

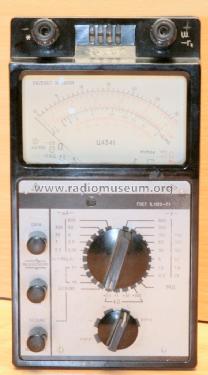

Analog Multimeter C-4341 - Ц-4341
Mashpriborintorg (Машприборинторг) (MPI); Moscow
- Country
- Soviet Union
- Manufacturer / Brand
- Mashpriborintorg (Машприборинторг) (MPI); Moscow
- Year
- 1974
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 218886
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 4,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Analog Multimeter C-4341 - Ц-4341 - Mashpriborintorg Машприборинто
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 115 x 214 x 75 mm / 4.5 x 8.4 x 3 inch
- Notes
-

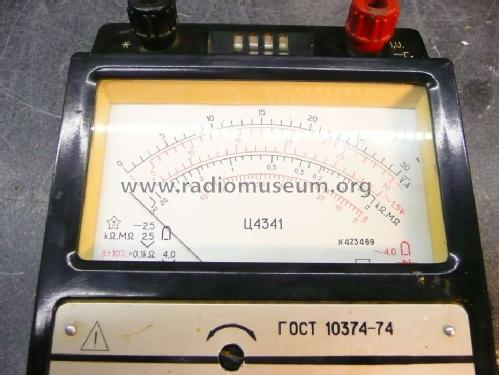

Analog multimeter with transistor meter. On the meter is also written: ΓOCT 10374-74, Made in the USSR.
In Germany sold by Bürklin and Völkner.
16,700 Ω/v in DC and 3,300 Ω/V in AC.

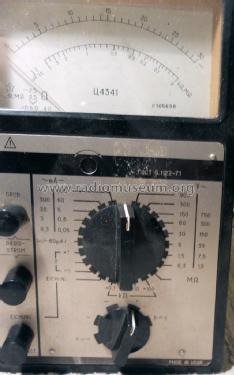

Ranges:- Voltage DC: 0.3 - 1.5 - 6 - 30 - 150 - 300 - 900 V
- Voltage AC: 1.5 - 7.5 - 30 - 150 - 300 - 750 V
- Current DC: 0.06 - 0.6 - 6 - 60 - 600 mA
- Current AC: 0.3 - 3 - 30 - 300 mA
- Resistance: 2 - 20 - 200 kΩ - 2 MΩ
- Transistor test: hfE - Iceo
The mobile equipment can withstand an overload of 100 times for short periods without damage.
- Net weight (2.2 lb = 1 kg)
- 0.930 kg / 2 lb 0.8 oz (2.048 lb)
- Price in first year of sale
- 60.00 DM
- Mentioned in
- Völkner Sonderliste 2/1979
- Literature/Schematics (1)
- -- Original prospect or advert (“CQ Elettronica”, Italy, CD editor, number 3/132, December 1977.)
- Author
- Model page created by Petros Tsirvoulis. See "Data change" for further contributors.
