Vielfachmessgerät C-4317M (Ц-4317М)
Elektroizmeritel, Zhitomir, SU (soviet union)
- Country
- Soviet Union
- Manufacturer / Brand
- Elektroizmeritel, Zhitomir, SU (soviet union)
- Year
- 1990 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 237947
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / AA: 2x 1,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Vielfachmessgerät C-4317M - Elektroizmeritel, Zhitomir,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 105 x 45 x 170 mm / 4.1 x 1.8 x 6.7 inch
- Notes
-

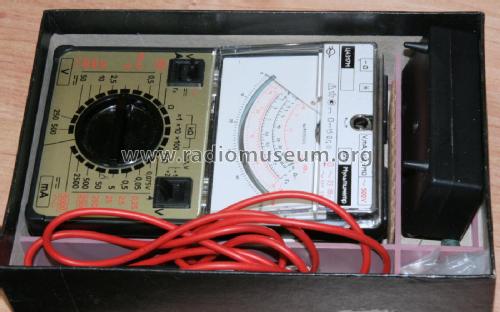

Vielfachmessgerät C-4317M, analoge Anzeige.
Messbereiche:
Gleichspannung von 0,5 - 500V,
Wechselspannung von 0,5 - 250V, Gleichstrom von 0,05 - 2,5A,
Wechselstrom von 0,25 - 5A,
Widerstände bereich Ohm, x1 x10 x100 kOhm, MOhm,
Relativer Wechselspannungspegel -10 ... +10dB.
Elektrischer Überlastungsschutz. Mit Zubehör zur Transistor Messung.
