- Country
- United States of America (USA)
- Manufacturer / Brand
- Masco Mark Simpson Company Inc., Long Island
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 266267
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 5 W (max.)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Masco 53R - Masco Mark Simpson Company Inc
- Shape
- Tablemodel, with any shape - general.
- Notes
-

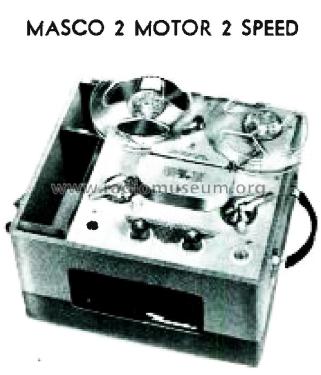

Mark Simpson 2Motor 2Speed Radio Tape Recorder Model Masco Series 53R.
3.75 and 7.5 ips
80 - 8500 cps +/-3db at 7.5 ips
80 - 5000 cps at 3.75 ips
Power output is 5 Watts to internal or external speaker
The case is finished in maroon leatherette and reels store inside the lid
See also:
Masco 53 (has no built-in radio)
- Mentioned in

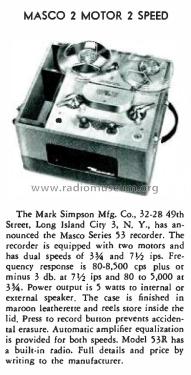

- -- Original prospect or advert (Magnetic film & Tape Recording April 1954 page 8)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
