• Country
• Soviet Union

• Manufacturer / Brand
• Mashpriborintorg (Машприборинторг) (MPI); Moscow

• Year
• 1972

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 297833

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• Д2В Д2В

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

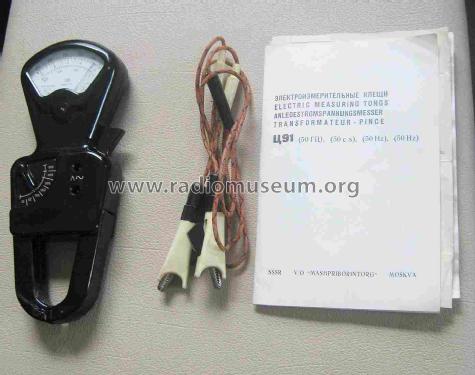

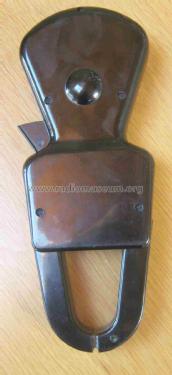

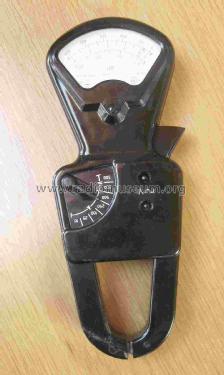

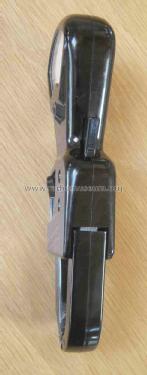

• Model: Stromzange mit Spannungsmesser - Клещи электроизмерительные C91 {Ц91} - Mashpriborintorg Машприборинто

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 238 x 94 x 36 mm / 9.4 x 3.7 x 1.4 inch

• Notes

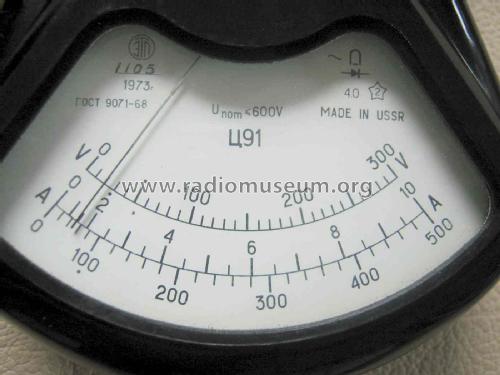

• Ц91 ist eine Stromzange mit Spannungsmesser mit den Messbereichen
  Srom: 0 - 10; 25; 100; 250 und 500 A,
  Spannung: 0 - 300 und 600 V,
  Prüfspannung 2 kV.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
