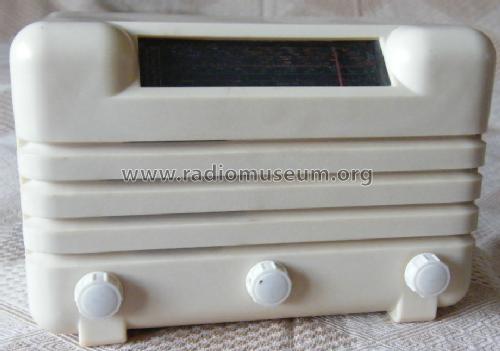

D110 white
Masteradio, London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Masteradio, London
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 79060
The Resistive dropper lead is missing
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: D110 [white] - Masteradio, London
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10.5 x 7 x 6 inch / 267 x 178 x 152 mm
- Notes
-
Available in walnut brown Bakelite, or in white, green or blue plastic cabinets. Same cabinets for "Sundown Star"(1951).
The model D110W from Masterradio is a model D110 with wooden case. Therefore the schematic is for both types as stated there. The D110 was available in different colors: D110 in brown, D110 in white, D110 in green and D110 in blue.
- Source of data
- Radio! Radio!
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Trader sheet 833
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
