• Country
• Great Britain (UK)

• Manufacturer / Brand
• Masteradio, London

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104364

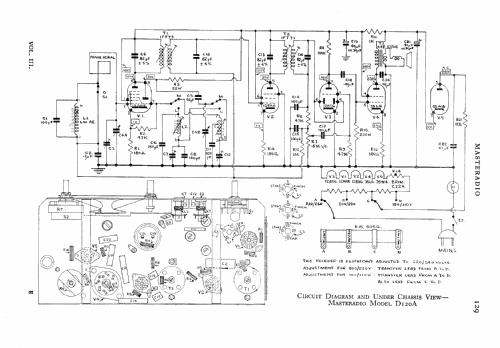

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AH8 12BA6 12AT6 35L6 35W4

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 100; 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Sandown D120A - Masteradio, London

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10.5 x 7 x 6 inch / 267 x 178 x 152 mm

• Notes
• Available in Walnut, Cream, Green or Blue.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
