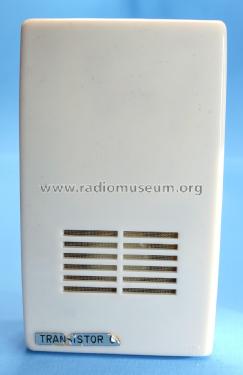

Golden Bell All Transistor TR-306A Ch= TR-3V6B
Masudo Electric Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Masudo Electric Co. Ltd.; Tokyo
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 347539

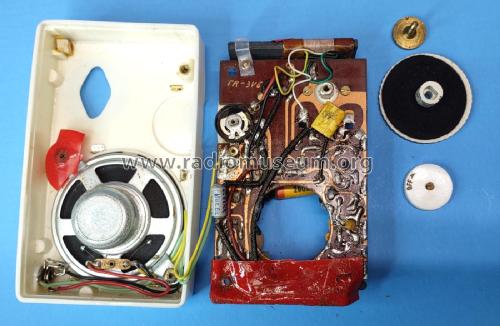

Chassis (PCB) is TR-3V6B.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Power out
- 0.15 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Golden Bell All Transistor TR-306A Ch= TR-3V6B - Masudo Electric Co. Ltd.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 2.8 x 4.6 x 1.4 inch / 71 x 117 x 36 mm
- Notes
-
Weight stated includes the 9V battery.
Very similar to the Golden Bell All Transistor 6 except this model only has All Transistor on the dial.
Similar to the models reported under Golden Bell HR-203.
- Net weight (2.2 lb = 1 kg)
- 0.71 lb (0 lb 11.4 oz) / 0.322 kg
- Author
- Model page created by Jerry Elarton. See "Data change" for further contributors.
